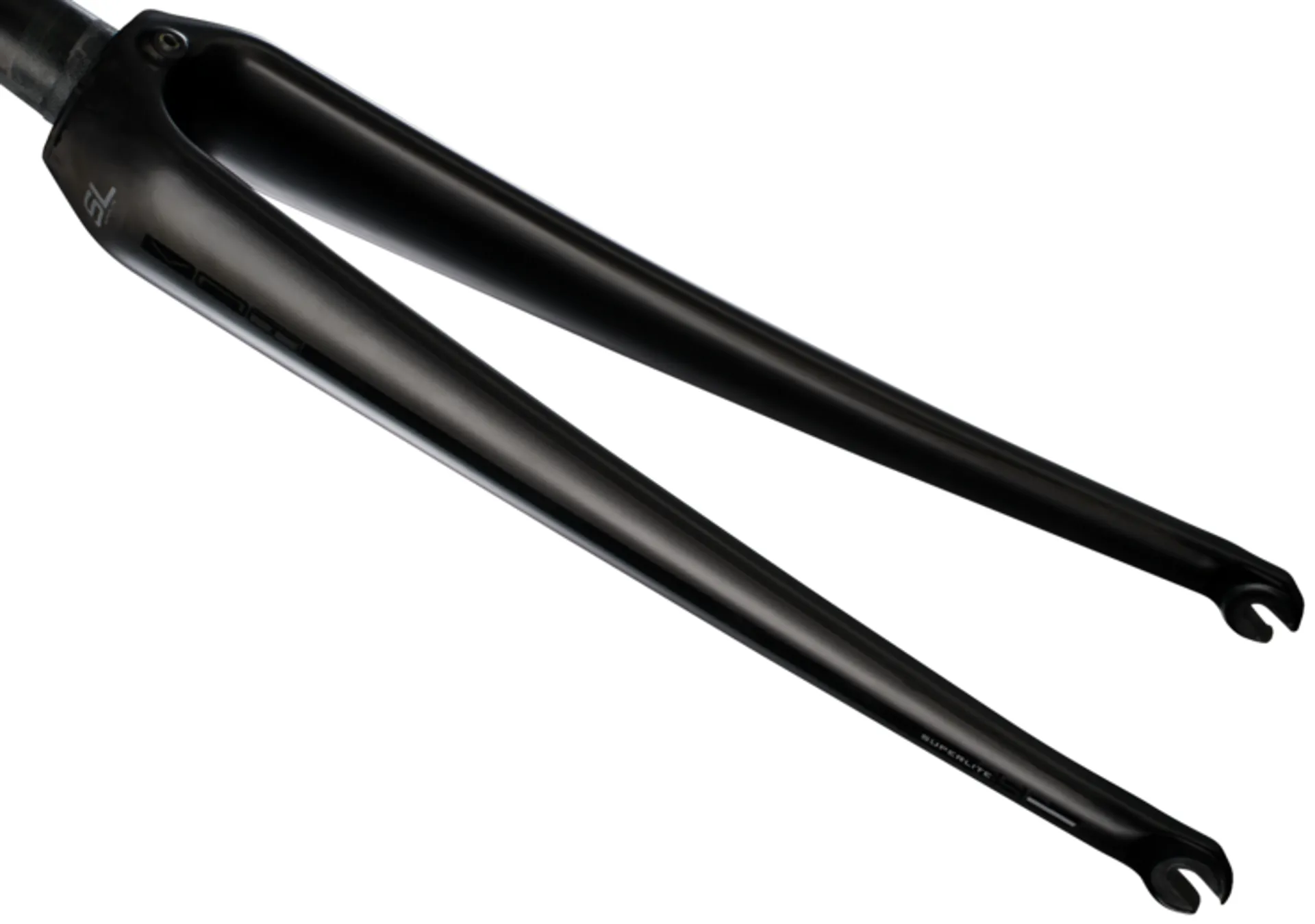

Van Nicholas Astraeus Titanium Hydroformed 52cm, complete with Carbon Fork and Seat Post.
Van Nicholas Astraeus Titanium Hydroformed 52cm, complete with Carbon Fork and Seat Post.
Van Nicholas

52cm Van Nicholas Astraeus Frameset

€3,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

52cm Van Nicholas Astraeus Frameset

Season:2021

Brand:Van Nicholas

Code:VN-ASTRA-01

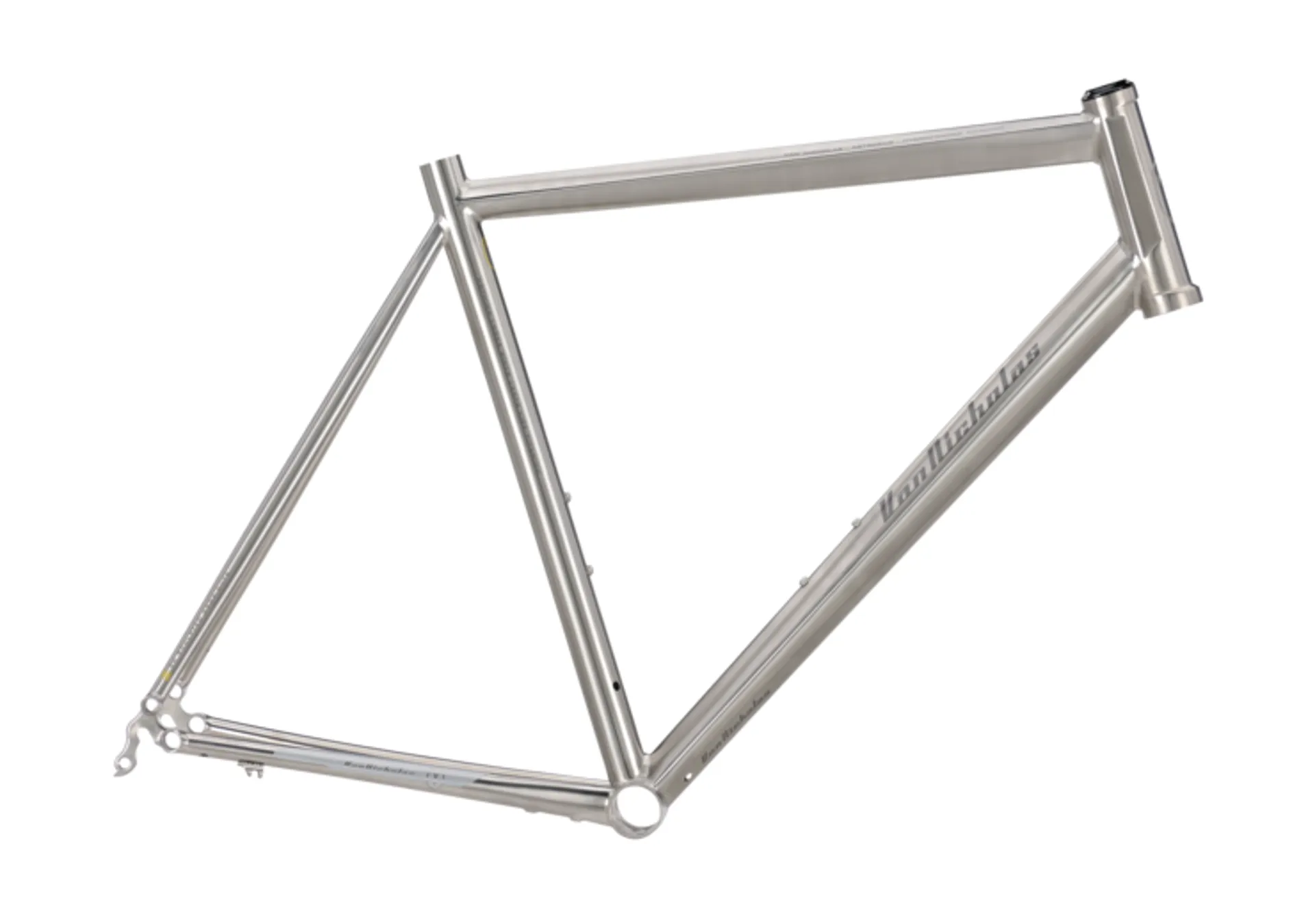

Van Nicholas Frame Astraeus 3Al/2.5V Titanium Hydroformed Road

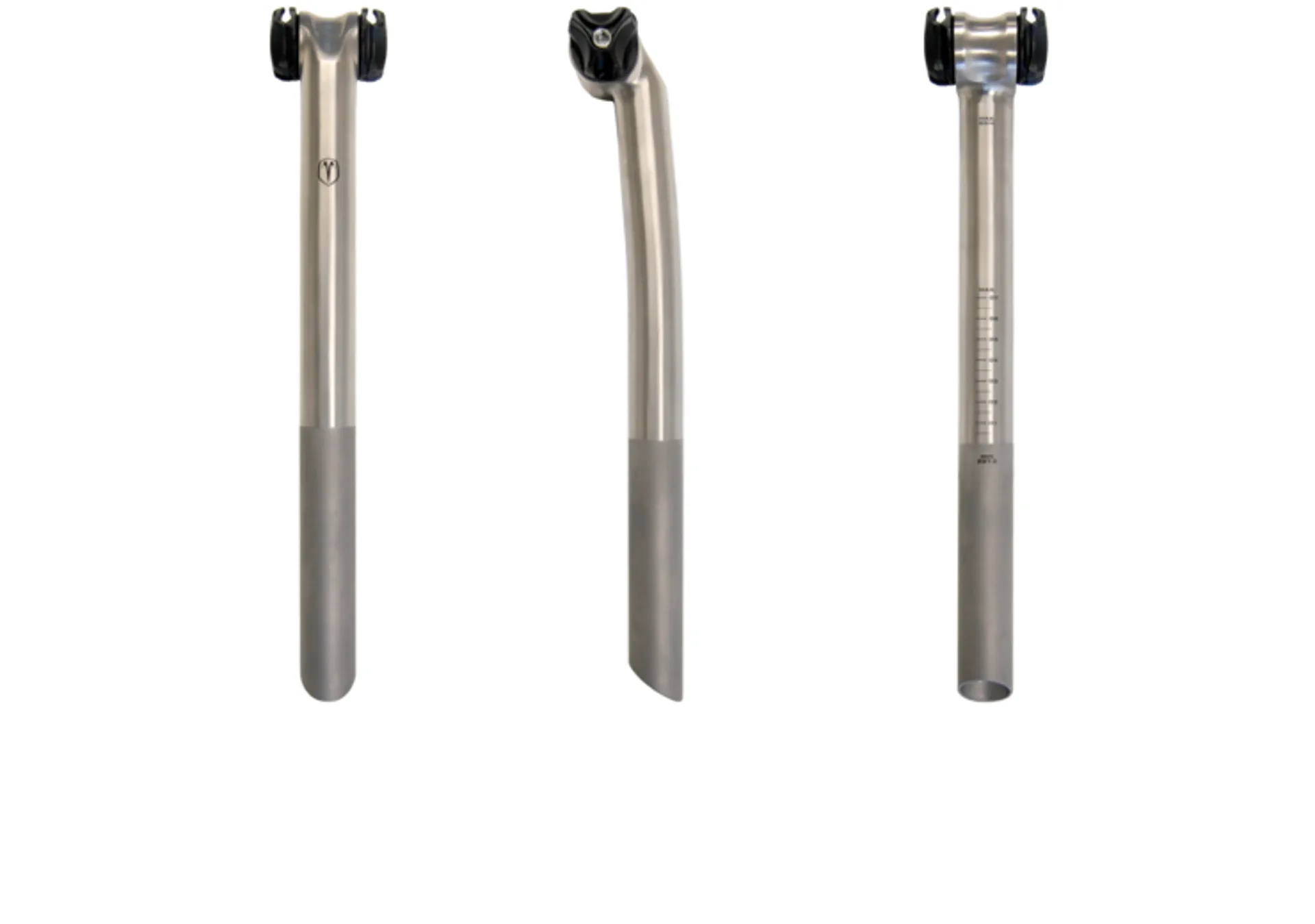

The pinnacle of Titanium racing bike design. All our expertise combined into one explosive package, with poise and power in abundance. Light and stiff, aero-optimised and aesthetically bold. The closest you can get to flying on two wheels. Included FSA headset, VN Seatpost Titanium 300mm, 30.9mm, andVN Seat Post Collar Titanium, 34.9m
Frame: 1830 grams (56cm)
Technical Information
specifications

Head Tube Logo
ENGRAVED HEAD TUBE; Original Van Nicholas

Frame Finish
POLISHED FINISH; High Lustre

Frame Tubing
HYDROFORMED TUBING; Liquid versus Titanium

Dropout
3D SCULPTED DROPOUT; Maximum efficiency

Bottom bracket
PRESS FIT BB; Stiffer, lighter

Head Set
TAPERED INTEGRATED HEADSET

Cable routing
INTERNAL CABLE ROUTING; Clean aesthetics

Drivetrain option
MECHANICAL AND ELECTRONIC SHIFTING COMPATIBLE

Feature
H-BRIDGE; Increased stiffness

Bottom Bracket
86.5 mm Press-Fit Bottom Bracket

Seat Post Diameter
30.9 mm Seat Post Diameter

Front Derailleur
34.9 mm Clamp On Front Derailleur

Seat Post Collar Diameter
34.9 mm Seat Collar

Headset
1-1/8" - 1-1/4" 42.0/47.0 mm (ID/ID) Integrated Headset

Hub spacing
130.0 mm Rear Hub Spacing

Dropout
7.0 mm thick 3D Sculpted Drop Outs

Brake system
Caliper Brake Systems Only

Maximum Tire Usage
Maximum 25-622 (700x25C) Tire Clearance

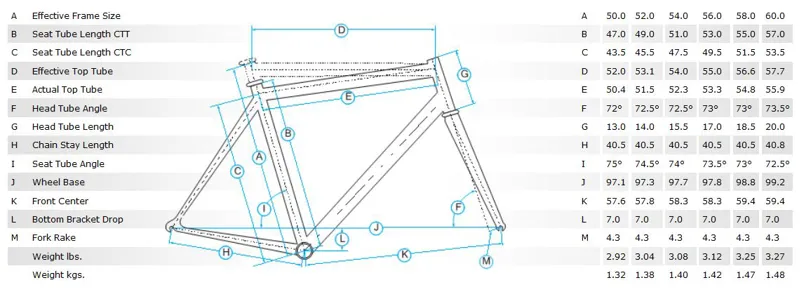

Sizing Information
Professional Opinion
